Ford has sold the factory "oil cooler" as a cooler for marketing purposes.  It is in fact a oil heater.  But not all the time.  It is designed to get the oil up to temp (ideally above 180*) as fast as possible.  Remember that the coolant at startup does not go through the radiator.  Instead it is diverted back to the block until the thermostat opens up.  This not only gets the temp up quicker it also heats the oil quicker.  This is all about emissions.  As well as the oil works best when its a consistent temp.
There is many reasons for eliminating this piece.  You can run a much larger oil filter when you remotely mount it.  Also many want to move the thermostat to the upper hose thus eliminating much of the hose maze off the lower radiator hose.
Keep in mind it is always a good idea to let your engine get to temp before driving.  Many problems arise when the oil isn't at temp before circulating.  Also if you run a aftermarket true oil cooler you NEED to have a oil thermostat in line so you don't over cool the oil.


As you come to expect from Cobra Engineering this piece is suppior to all other "plates" are on the market.  These are profiled on both sides to help the coolant smoothly move to the block.

Also here you see there is two different styles available.  Earlier blocks have the smaller opening and later blocks have the larger.  Check your gasket to see which one you have.

Not pictured is two 1/4 NPT ports on the side for your oil pressure gauge or other accessory.

$220 for all styles

Shipping included for the contiguous 48 states.

Oil Cooler Delete with SMALL Opening
( left one pictured )

Oil Cooler Delete with LARGE Opening
( right one pictured )


Now you can get one with a -20 ORB (O-ring) Port.
This alows you to use a fitting with a -16 AN side or even different size ends and nipples that you wish.

Oil Cooler Delete with SMALL Opening with -20 ORB PORT
Oil Cooler Delete with LARGE Opening with -20 ORB PORT

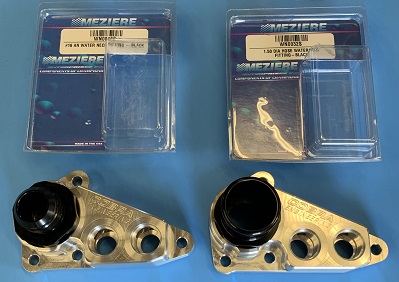

Meziere fitting options for the above -20 ORB ports
AN or Hose Barb

Yet to come will be fitting and hose options.

Also in the works is a filter mount to mate with this part.
